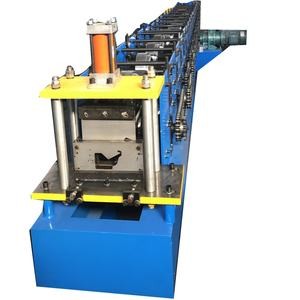

Full Automatic Bearing Steel Half Round Portable Gutter Machine

Fully Automatic Portable Half-Round Rain Water Gutter Cold Roll Forming Machine

Part details	Item Name	Specification
Material	Raw material	Galvanized steel
	Thickness	0.7-1.5mm
Machine	Roller station	18-25
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	Bearing steel
	Machine size	About 10×1.7×1.7 m
	Machine weight	About 7 ton
	Machine color	As customer' request
	Working speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1.5*2 inch
	Main power	7.5*2 kw
	Pump power	5.5 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	3 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding guide ---------------------------------------- 1 Unit
• main roll forming machine ---------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station ------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ----------------------------------------- 1 Unit

Working Flow

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine --> Cut to length --> Out-put Table

Gutter Profile Drawing

Applications

Rainwater gutter, k gutter, half round gutter, box gutter ,seamless gutter

Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Gutter Machine Pictures

Factory Pictures
