Steel Sheet Upright Rack Roll Forming Machine for Storage Shelf Profile
A). Basic Introduction
Racking roll forming machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, hydraulic Cutting, run-out table, electronic control system and hydraulic system.Shelf Rack
Roll Forming Machine can adopt servo controlled material feeding technology for complex punching to guarantee precision. Storage rack roll forming machine also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength. It is dicided according to your requirement.
B). Main Specifications
| Description | Introduction |
| Working efficiency | 0-15 m/min (not include cutting time) |
| Thickness of Material | 2-3mm |
| Control system | PLC Frequency Control System with touch screen |
| Uncoiler system | 5Ton Manual Operation |
| Material thickness | 1.5-3.0mm |
| Material | GI, Carbon steel |
| Forming by rolling | 18 Steps |
| Roller material | GCR15 Aluminium processing after quenched HRC58-62degree, Chrome plated |
| Shaft and the diameter of axle | 45# Aluminium-processing, diameter of axle=80mm |
| Main part power | 18.5kw |
| Hydraulic motor power | 5.5kw |
| Hydraulic pressure | 12Mpa |
| Scissor Cutting Material | Cr12Mov, herd steel HRC 58-62 degree |
| length tolerance | 3m±1.5mm |
| voltage | 380V, 50HZ, 3 phase (adjustable by customer needs) |
| Driving Method | Chain driving |
| Color | Blue (adjustable) |
| Size | length*Width*Height - 20*1.3*1.2m |
C). Main Components
Decoiler --------------------------------------------- 1 Unit
Feeding & Leveling -------------------------------- 1 Unit
Hydraulic punching device ------------------------ 1 Unit
Main roll forming machine ------------------------ 1 Unit

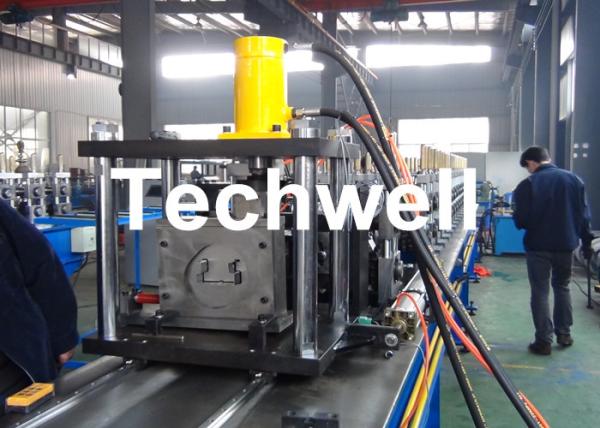

Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
D). Working Flow
Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table
E). Applications
With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.
Used as Storage rack, storage shelf, Steel rack,steel shelf, rack beam.
F). Competitive Advantages
High Quality
Reasonable Price
Good after Service
Factory Visit
1 Year Warranty
More Than 10 Years Experience
